Plants we have built.

Solvent extraction, preparatory, distillation and solvent recovery, meal conditioning and bagging — photographed on our own installations, section by section.

0Photographs
0Plant sections
0Countries built in
60–0TPD capacity

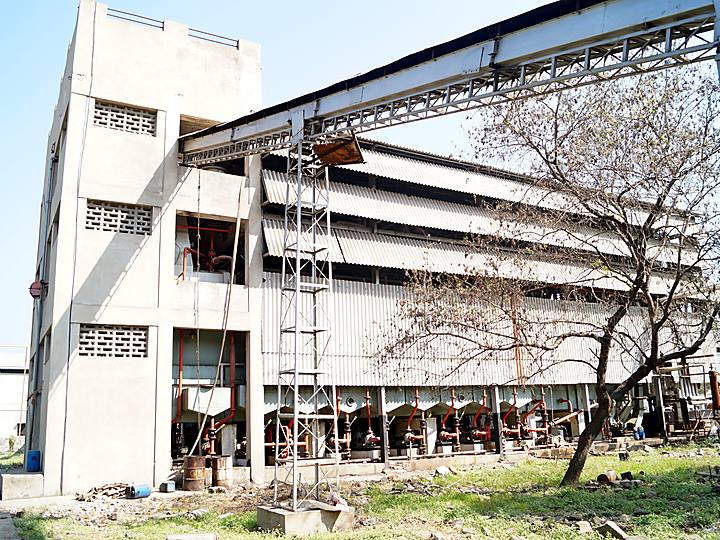

Main process building
Main process buildingThe extraction building seen from the approach road.

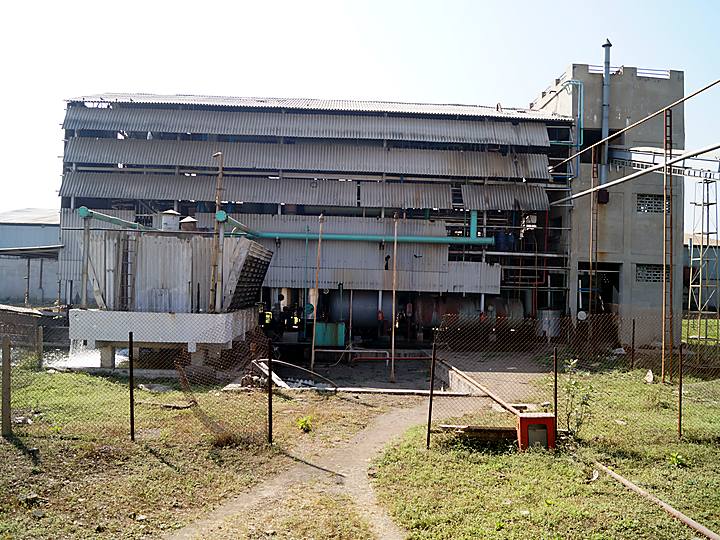

Plant approach
Plant approachProcess block and services from the site entrance.

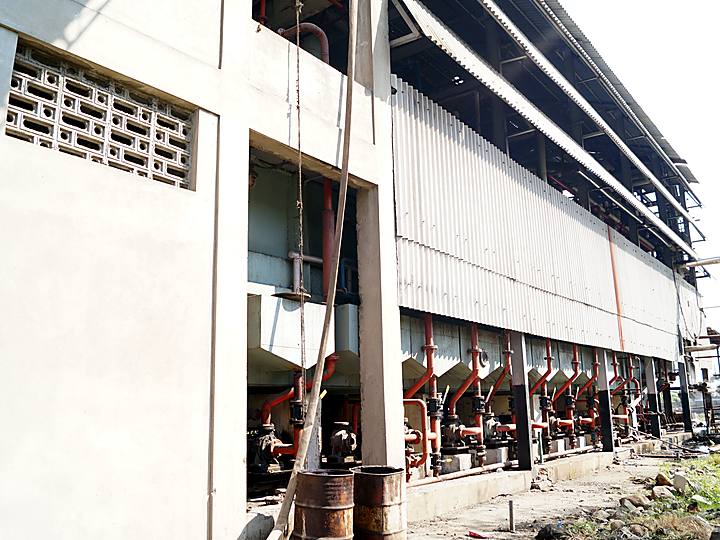

Equipment bay
Equipment bayExternal elevation along the equipment bay.
Storage tank
Storage tankBulk storage tank and access gantry.

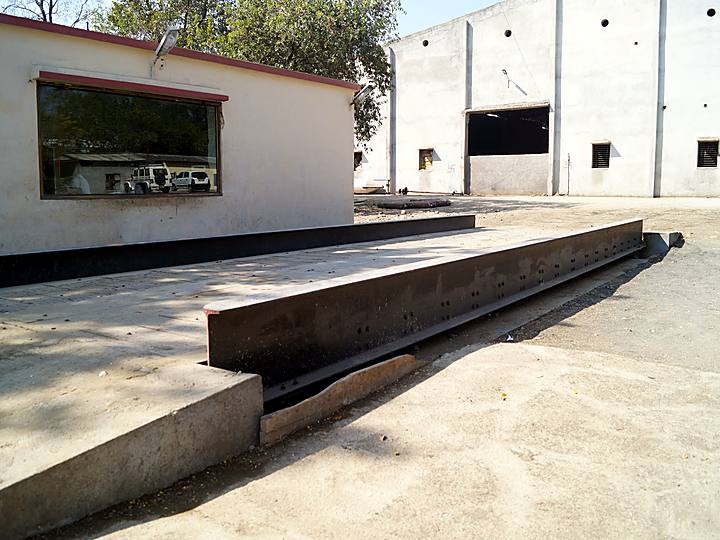

Weighbridge & despatch
Weighbridge & despatchWeighbridge and despatch apron.

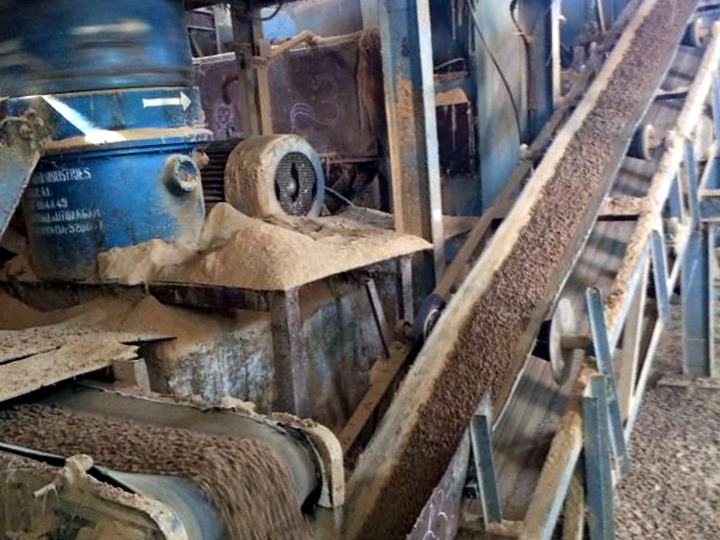

Conveying
ConveyingMechanical conveying into the preparatory section.

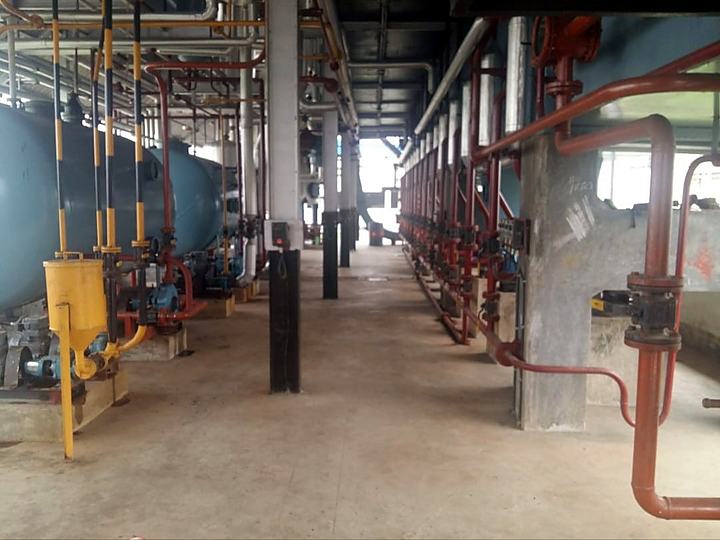

Plant view
Plant viewGeneral view along the plant floor and pipework.

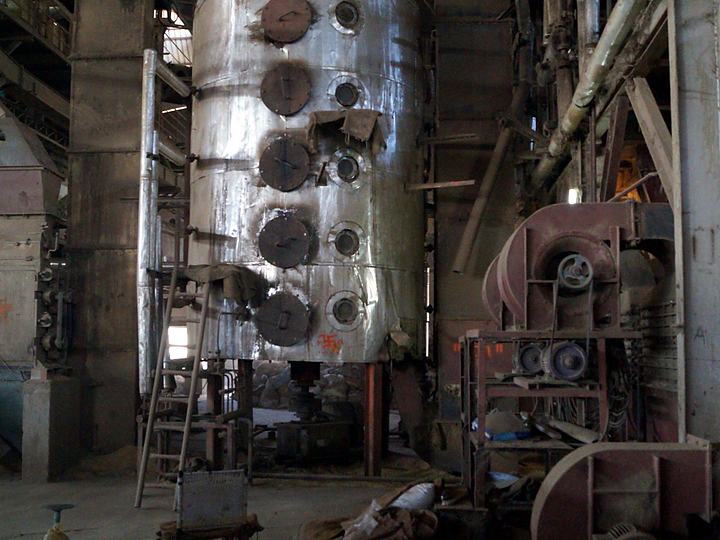

Preparatory section
Preparatory sectionProcess vessels on the preparatory floor.

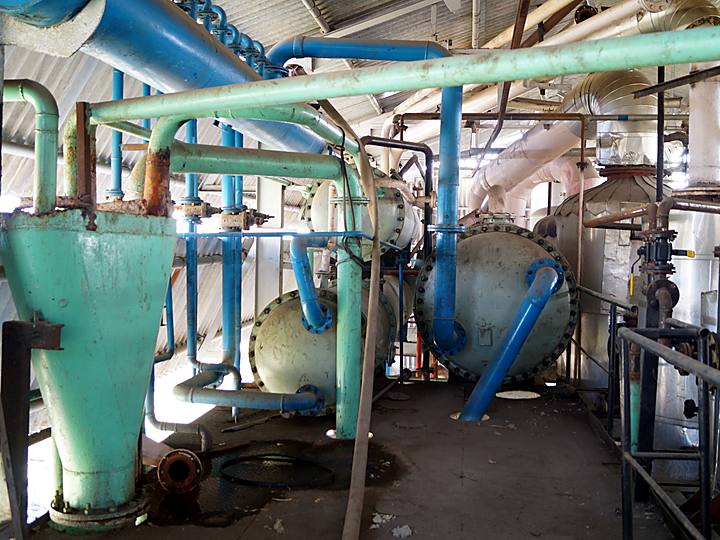

Condenser / vapour recovery
Condenser / vapour recoveryCondensers and the vapour recovery section.
Solvent manifolds
Solvent manifoldsDistribution pipework beneath the extractor.
Vapour miscella
Vapour – miscellaVapour and miscella lines with access walkway.
Scrubber
ScrubberScrubber vessel and associated pipework.

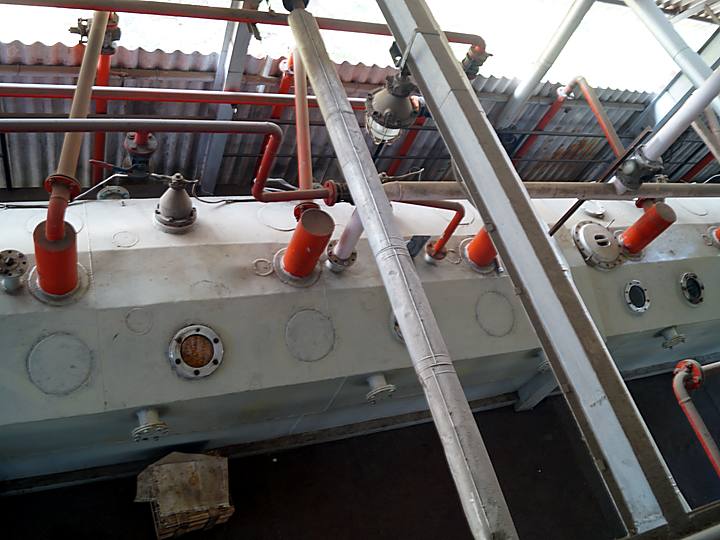

Extractor spray
Extractor spraySpray headers and isolation valves on the extractor.
Plant view
Plant viewGeneral view across the process floor.
Instrumentation
InstrumentationLocal gauges and instruments at the valve station.
Main plant operating section
Main plant operating sectionThe main operating section of the plant.

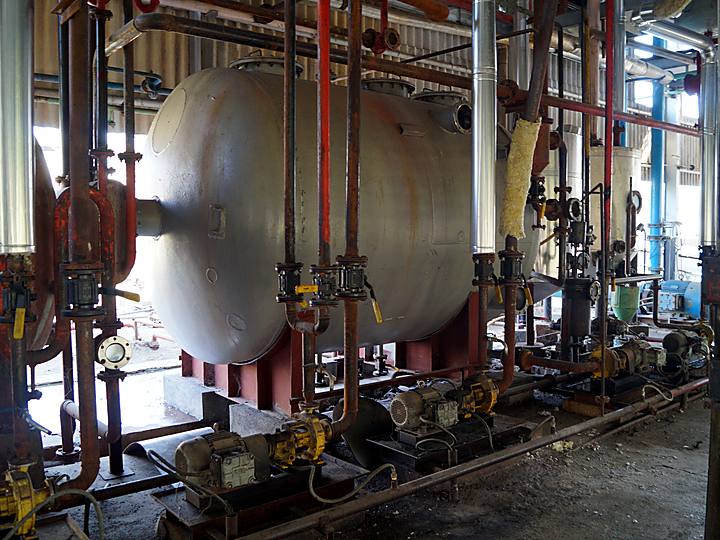

Floor line up plant
Floor line up plantEquipment lined up along the process floor.

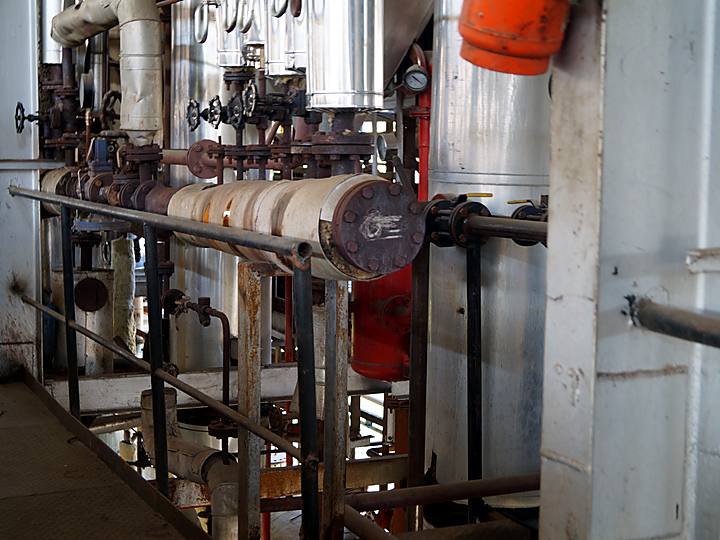

Steam pipework
Steam pipeworkSteam lines and valve stations.

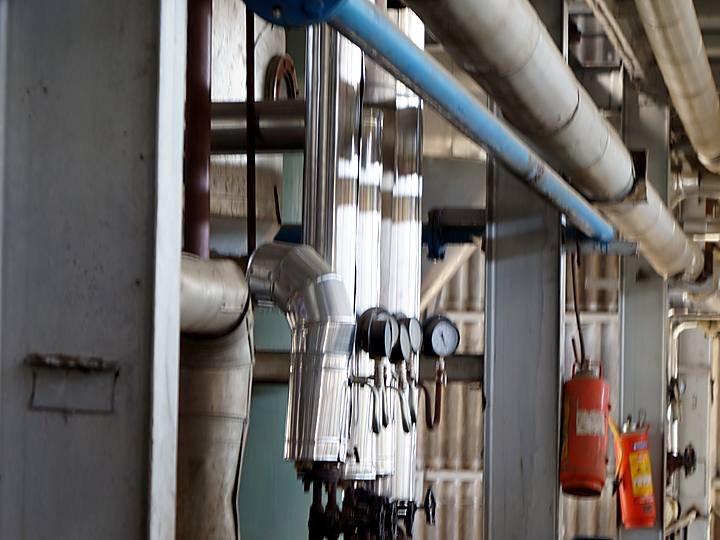

Overhead lines
Overhead linesOverhead vapour and condensate runs.

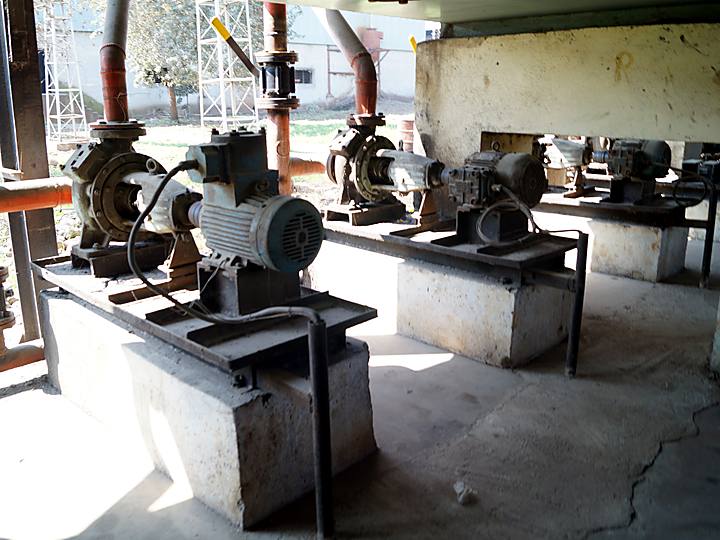

Pump set
Pump setProcess pumps on plinths.

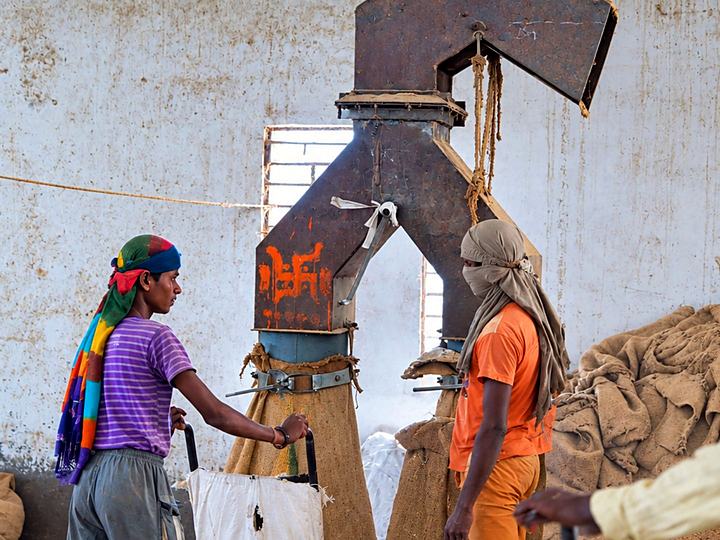

De-oiled meal
De-oiled mealFinished de-oiled meal bagged at the discharge point.

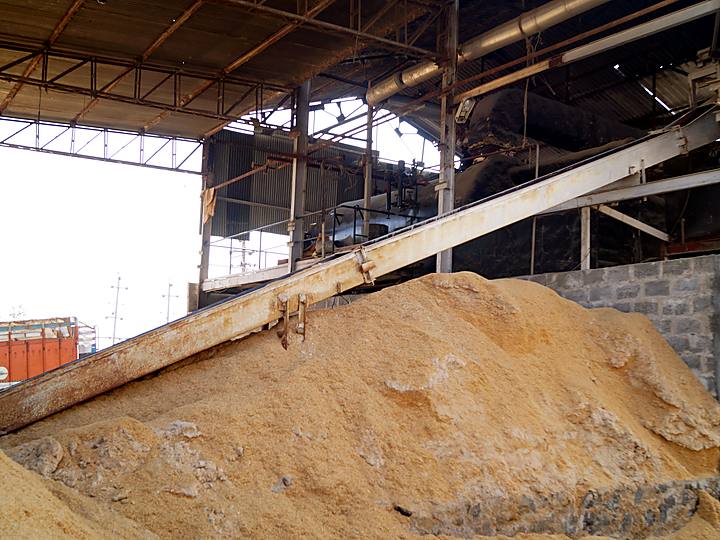

Boiler house
Boiler houseFuel stockpile and conveying at the boiler house.
Meal cyclone
Meal cycloneConveying of extracted meal into the conditioning section.

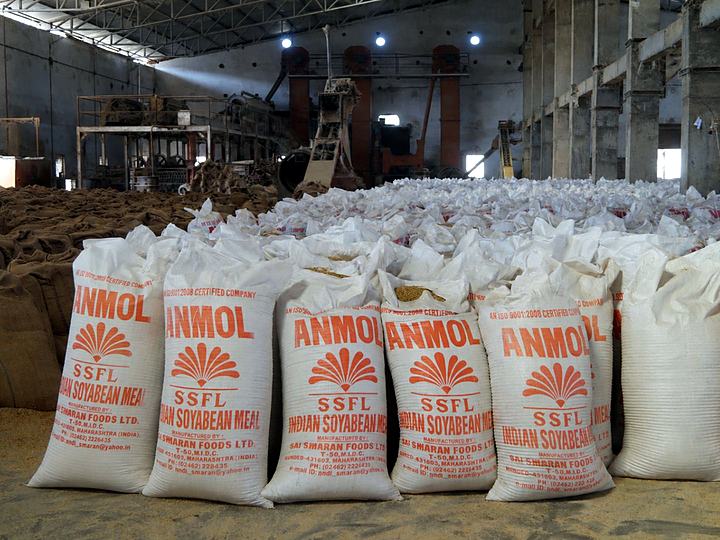

Conditioning floor
Conditioning floorBagged product in the bagging and despatch area.

No photographs in this section yet.

Enquiries

Want a plant like
one of these?

Send us the oilseed you're processing and the capacity you need. We'll come back with a process route and an indicative scope.
